Export im Shape Format

• Values in field "ID" can have at most a length of 15 chars (see [DIN-45687]); longer values are truncated.
• Values in field "NAME" can have at most a length of 40 chars (see [DIN-45687]); longer values are truncated. This is sufficient for names of project-elements, given that these can currently have at most 32 characters.

Shape export: new options

The shape-export component has been extended with new options concerning the attribute-fields included in the exported shape-files. [See also Extended attributes.]

• You can specify the names of the fields that contain receiver-values (e.g. immissions).

• You can freely define several additional attribute-fields. For each of these additional fields, you need to specify
  • the field's name [max. 10 chars. long],
  • its type [real, string, etc.],

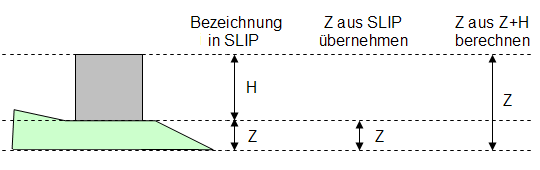

  • its value [to help you with this, the associated drop-down list contains several '$'-prefixed variable names like "$Z", "$H", "$ZH", "$ES", "$USE", "$LIMIT_D", "$LIMIT_N", extended attributes that actually present in your project and more] and
  • the element-type for which the field should be exported as attribute.

  ❑	Anmerkung: Variables "$LIMIT_D" and "$LIMIT_N" contain the limit value, based on the project-kind (see Files > Project-info), ES and use.

• You can also export a copy of each extended attribute, and specify a prefix to be used for the field names of such copies.

  ❑

  Anmerkung: For convenience, ext. attributes have "qualified names" (this means that names consist of one or several dot-delimited name-parts, e.g. "SBB.APT.Bezeichnung"), but the exported field-name only contains the last name-part (e.g. "Bezeichnung"), prefixed with the prefix you specified); see also notes about the max. field-name length in shape-files below.
